ROAD DELINEATION & SAFETY

Raised Pavement
Marker (RPM)

High Visibility
Durable Build
Weatherproof
Long Life
Raised Pavement Marker (Cat's Eyes)
ROAD DELINEATION & SAFETY

Raised Pavement Marker
(Cat's Eyes)

Engineered with high-strength die-cast aluminium alloy and impact-resistant polymer casing, our Raised Pavement Markers (Cat's Eyes / Road Studs) deliver supreme retroreflectivity and structural resilience.

≥25 Tonnes Load Bearing
800m+ Night Visibility

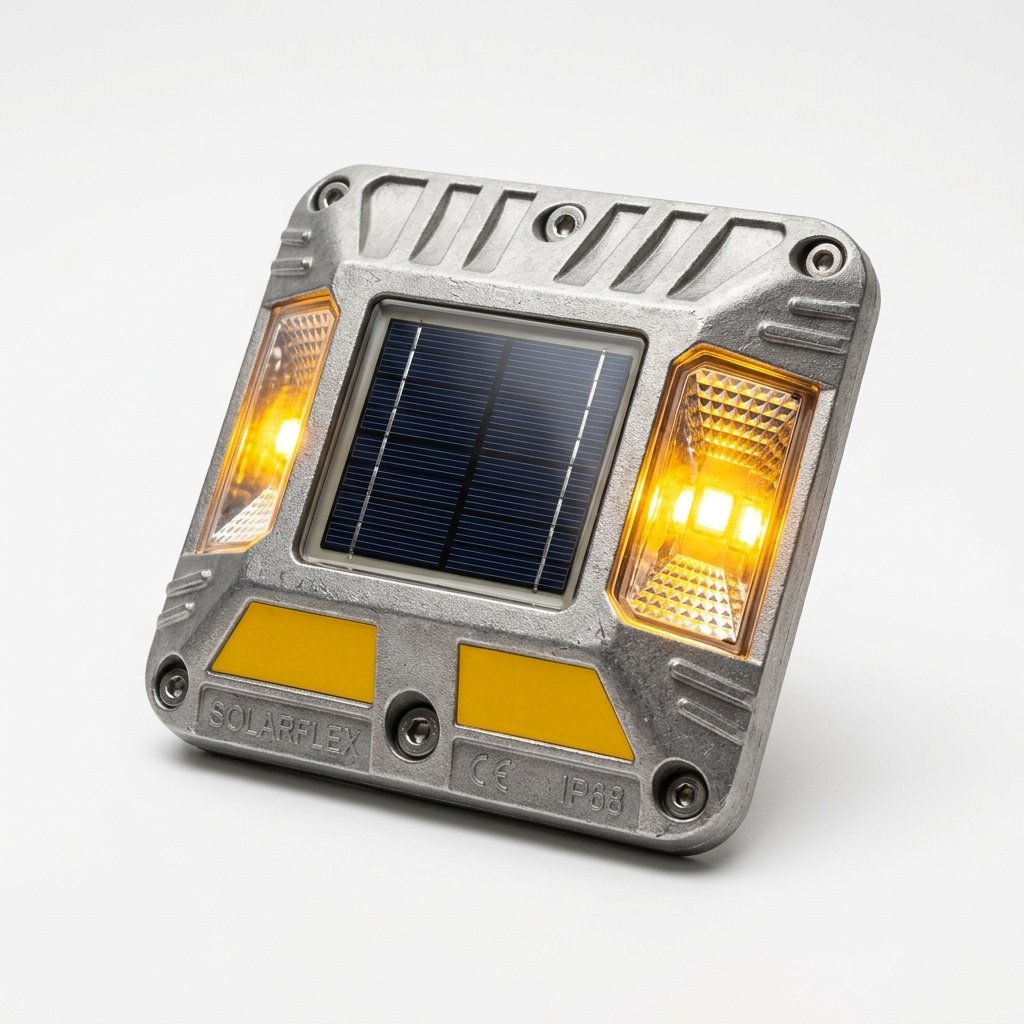

Solar LED Options
IP68 Fully Waterproof
Highway Authorities, NHAI & Road Contractors

Tested and approved as per IRC:35-2015 and ASTM D4280 standards. Available with single/double shanks, high-index prismatic lenses, and high-performance epoxy installation kits.

Enquire Now Technical Datasheet (PDF)
Why Choose Our RPM (Cat's Eyes)?

Highway Grade Raised
Pavement Markers (Cat's Eyes)

PB Road Safety Solutions Raised Pavement Markers are manufactured to withstand the constant pounding of heavy commercial trucks and multi-axle trailers. The microprismatic retroreflective optical lenses are vacuum metallized and hermetically welded to guarantee moisture resistance and lifelong brilliance.

Get a Quote

  • Certified compressive strength surpassing 25,000 kg (25 Tonnes)

  • Bi-directional microprismatic reflectors with abrasion resistant glass coating

  • Solid anchoring shank (50mm length) ensures rock-solid adhesion into asphalt/concrete

  • Solar-powered variants with monocrystalline solar panels and ultra-bright flashing LEDs

  • High retroreflective coefficient exceeding 500 mcd/lux at 0.2° observation angle

Technical Specifications

SKU RPM-101
Product Name Raised Pavement Marker (Road Stud)
Compressive Load ≥25 Tonnes (Heavy Commercial Vehicle Tested)

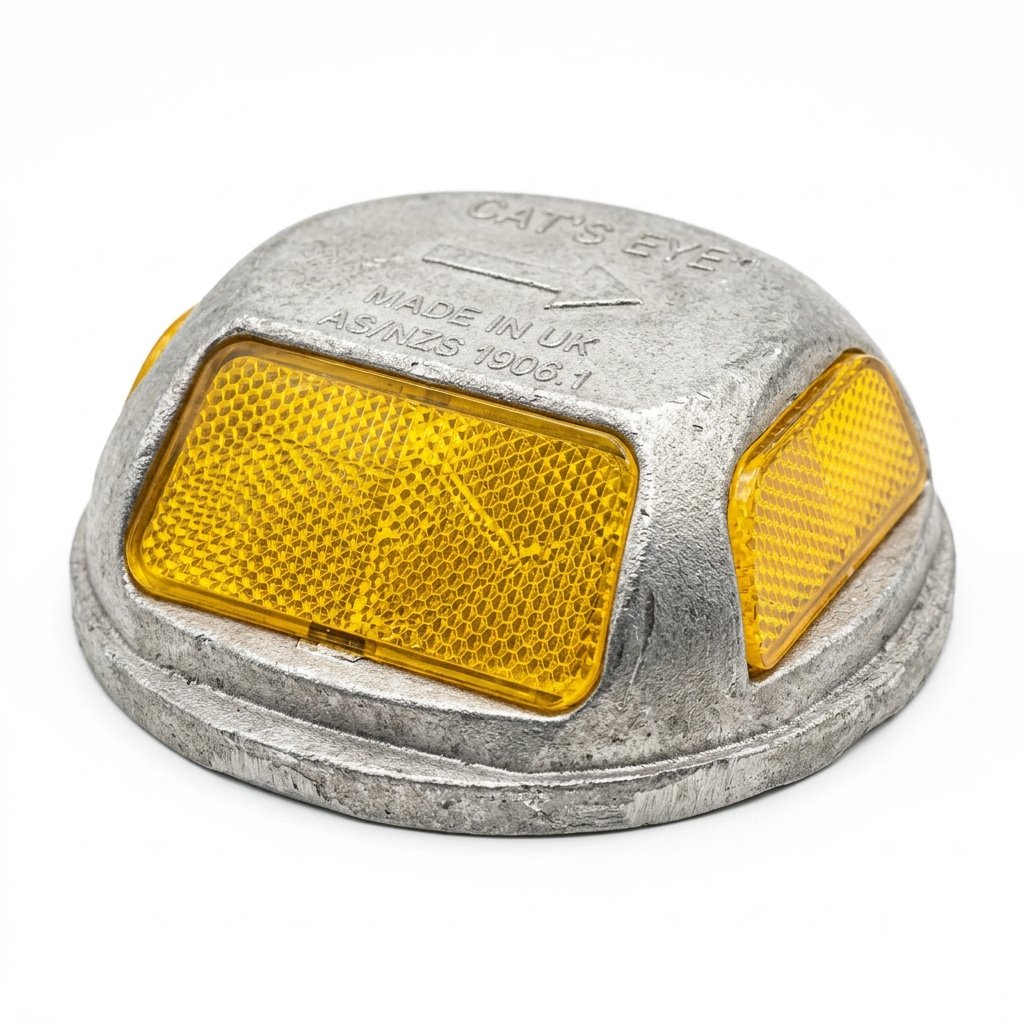

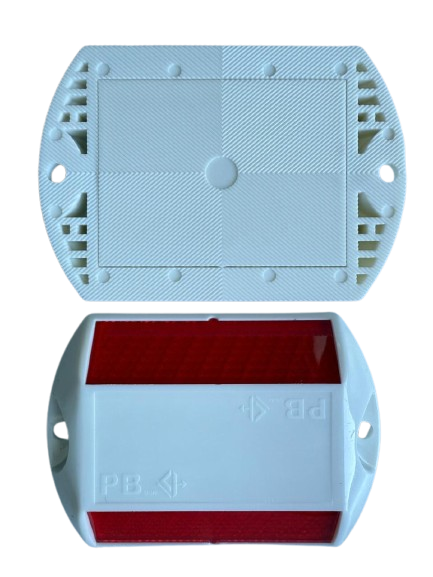

Housing Material ADC12 Die-Cast Aluminium Alloy or Polycarbonate/ABS
Dimensions 100 mm x 100 mm x 20 mm (50 mm Shank)
Reflector Lens Bi-Directional PMMA Microprismatic with Protective Glass Face
Standard Compliance IRC:35-2015 (Clause 10.3), ASTM D4280, EN 1463
FREQUENTLY ASKED QUESTIONS

Frequently Asked Questions

Find answers to common questions about installation, highway guidelines, and bulk supply.

Markers with shanks are installed by drilling a 50mm hole into the pavement surface, clearing dust with compressed air, pouring specialized two-component epoxy adhesive mortar, and inserting the shank firmly. Pavement markers without shanks are bonded directly to cleaned asphalt using high-strength bitumen or epoxy pads.

As per IRC:35 guidelines: White road studs indicate lane line dividers and centerlines; Amber (Yellow) studs mark the right-hand edge of dual carriageways and median dividers; Red studs denote the left-hand road shoulder or hazard line; and Green studs indicate deceleration lanes and entry/exit slip roads.
